What is Lion:Bit? - Complete Guide to STEM Education Platform

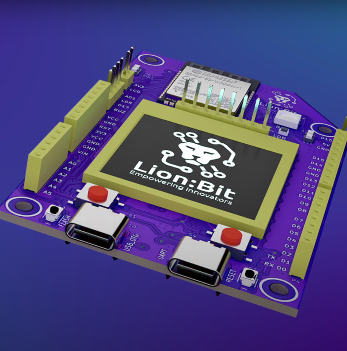

Lion:Bit is an innovative development board designed to cater to a wide range of users, including kids familiar with micro:bit, hobbyists experienced with Arduino, and professional IoT developers. Developed using the ESP32-S3 WROOM-1 module, this credit card-sized board provides a powerful and versatile platform for various projects. In addition to its Arduino compatibility, the Lion:Bit board features an LCD display, RGB LED, buzzer, and LDR as internal sensors. With support for 5V power and the ability to connect external sensors, Lion:Bit offers extensive flexibility.

ESP32-S3 WROOM-1 Module - The Heart of Lion:Bit

The Lion:Bit board revolves around the ESP32-S3 WROOM-1 module, an advanced system-on-chip (SoC) developed by Espressif Systems. The ESP32-S3 offers impressive capabilities to support a wide range of applications. Let's explore its key features:

Dual-Core CPU Performance

The ESP32-S3 module is equipped with a dual-core Xtensa LX7 CPU running at speeds of up to 240 MHz. This processing power enables multitasking, efficient task handling, and the execution of complex operations.

Lion:Bit empowers you to explore and realize your project ideas with ease, whether you're a beginner, an experienced hobbyist, or a seasoned professional.
Lion:Bit Development Team

Key Features & Capabilities

Wi-Fi & Bluetooth: Built-in connectivity for IoT projects
GPIO Pins: Multiple interfaces for external components
ADC Channels: Analog-to-digital conversion capabilities

PWM Support: Precise control of motors and LEDs
USB & OTG: Programming and communication support
5V Power: Support for various power requirements

Built-in Components & Sensors

Lion:Bit comes equipped with essential components that make it perfect for educational projects:

LCD Display: Built-in screen for project output and debugging
RGB LED: Programmable colored lighting for visual feedback
Buzzer: Audio output for sound-based projects
LDR Sensor: Light-dependent resistor for ambient light sensing
Touch Pins: Capacitive touch sensing capabilities

Target Audience & Applications

With its compact form factor, Arduino compatibility, internal sensors, external sensor support, USB and OTG features, and the powerful ESP32-S3 processor, the Lion:Bit development board caters to a diverse user base. It offers an engaging platform for kids familiar with micro:bit, provides familiarity to Arduino enthusiasts, and meets the advanced requirements of professional IoT developers.

About Lion:Bit

What is LionBit?

Lionbit is an innovative development board designed to cater to a wide range of users, including kids familiar with micro:bit, hobbyists experienced with Arduino, and professional IoT developers. Developed using the ESP32-S3 WROOM-1 module, this credit card-sized board provides a powerful and versatile platform for various projects. In addition to its Arduino compatibility, the Lionbit board features an LCD display, RGB LED, buzzer, and LDR as internal sensors. With support for 5V power and the ability to connect external sensors, Lionbit offers extensive flexibility.

ESP32-S3 WROOM-1 Module - The Heart of Lion:Bit

The Lionbit board revolves around the ESP32-S3 WROOM-1 module, an advanced system-on-chip (SoC) developed by Espressif Systems. The ESP32-S3 offers impressive capabilities to support a wide range of applications. Let's explore its key features:

Dual-Core CPU

The ESP32-S3 module is equipped with a dual-core Xtensa LX7 CPU running at speeds of up to 240 MHz. This processing power enables multitasking, efficient task handling, and the execution of complex operations.

Wi-Fi and Bluetooth Connectivity

Built-in Wi-Fi and Bluetooth capabilities allow seamless wireless communication. Whether it's connecting to the internet, interacting with other devices, or participating in IoT projects, the Wi-Fi and Bluetooth functionalities provide extensive connectivity options.

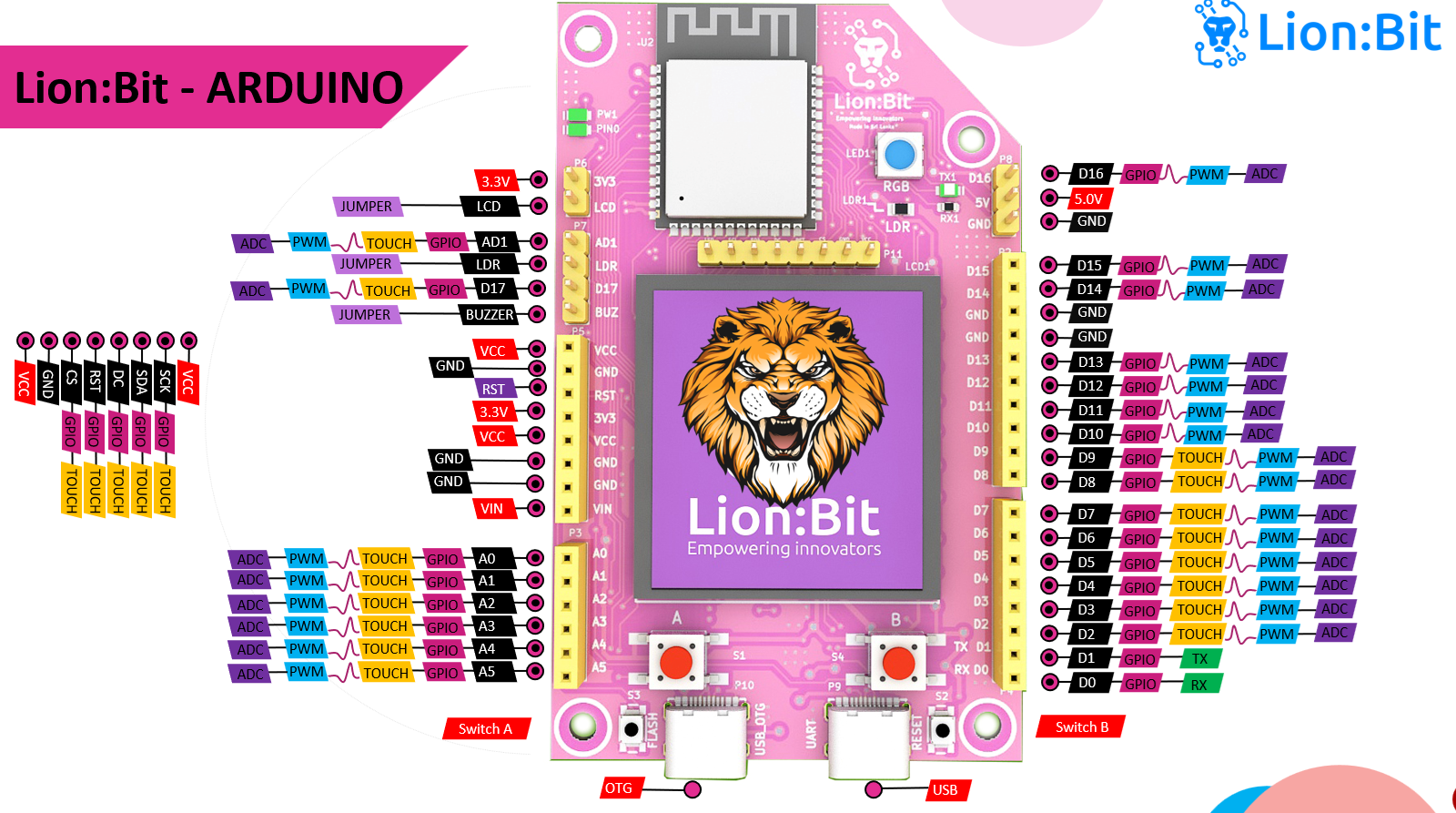

GPIO Pins and Interfaces

The ESP32-S3 module offers a multitude of GPIO pins and interfaces, simplifying the connection and control of external components and sensors. This feature enhances the board's versatility, compatibility with various sensors, and support for different open-source libraries and platforms.

Analog-to-Digital Conversion (ADC)

The ESP32-S3 incorporates built-in analog-to-digital converter (ADC) channels. This capability enables the accurate measurement and processing of analog signals from external sensors, facilitating applications that require environmental sensing or monitoring.

PWM (Pulse Width Modulation)

The ESP32-S3 supports PWM outputs, allowing for precise control of devices such as motors, servos, or LED brightness. This feature facilitates the implementation of projects involving actuator control or lighting applications.

USB and OTG Capabilities

The inclusion of USB and OTG (On-The-Go) capabilities further expands the Lionbit board's functionality. The USB port serves multiple purposes, such as powering the board, enabling serial communication for debugging and firmware updates, and facilitating programming.

Why Choose Lion:Bit?

With its compact form factor, Arduino compatibility, internal sensors, external sensor support, USB and OTG features, and the powerful ESP32-S3 processor, the Lionbit development board caters to a diverse user base. It offers an engaging platform for kids familiar with micro:bit, provides familiarity to Arduino enthusiasts, and meets the advanced requirements of professional IoT developers. Whether you're a beginner, an experienced hobbyist, or a seasoned professional, Lionbit empowers you to explore and realize your project ideas with ease.

Target Audience

Beginners

LionBit provides a user-friendly platform for those new to electronics and programming. With its block-based visual programming interface, LionCode, it's an excellent starting point for beginners looking to learn the basics of IoT and electronics.

Advanced Users

More experienced users and hobbyists will find LionBit to be a versatile and expandable platform. It supports multiple programming languages and offers onboard sensors and components, making it suitable for a wide range of projects and applications.

Developers

Professional developers and IoT enthusiasts can leverage LionBit's Arduino compatibility and extensive capabilities. It's an excellent choice for developing and prototyping IoT solutions and can seamlessly integrate with popular IoT cloud platforms.

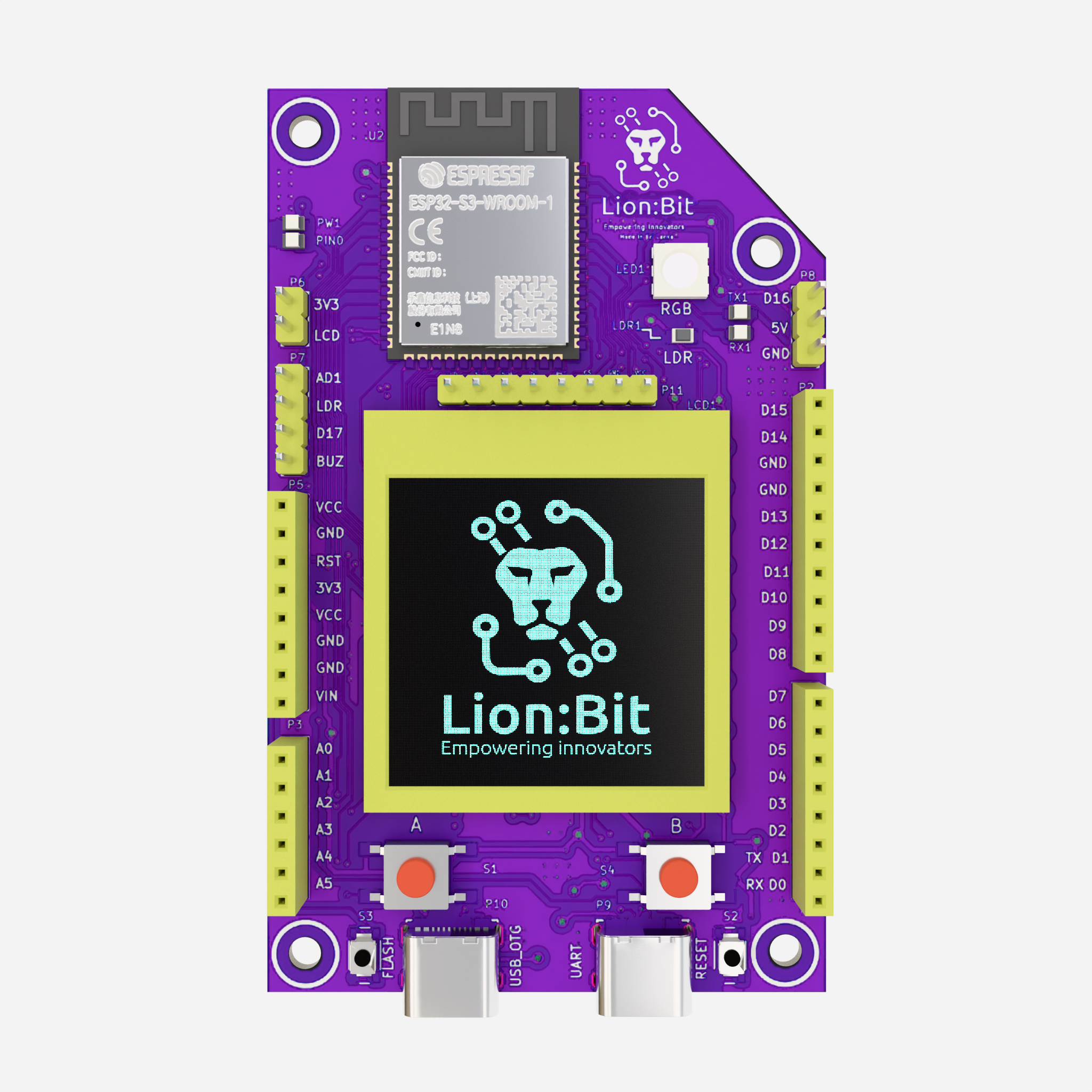

Lion:Bit Specs

ESP32-S3 WROOM-1

Dual-core 240MHz CPU

Wi-Fi + Bluetooth

Built-in connectivity

GPIO Pins

Multiple interfaces

LCD Display

Built-in screen

RGB LED

Programmable lighting

Buzzer

Audio output

LDR Sensor

Light sensing

Getting Started with Lion:Bit

Connecting to a Computer

2 min read

To connect your LionBit development board to a computer and install the necessary drivers, follow these general steps. Keep in mind that the specific steps may vary depending on your operating system (e.g., Windows, macOS, or Linux) and the drivers required for your LionBit board:

1

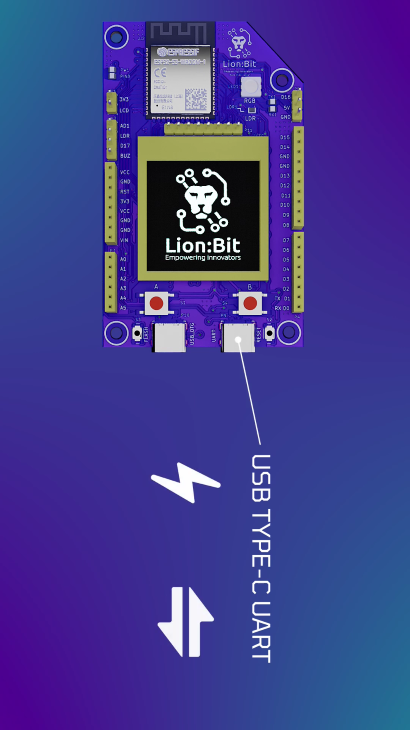

Connect LionBit to the Computer

Use a USB cable to connect your LionBit board to an available USB port on your computer. Ensure that the cable is suitable for data transfer.

2

Installing Drivers

Windows

In most cases, Windows will attempt to install the required drivers automatically when you connect LionBit. Allow some time for this process to complete. If automatic installation doesn't work, you may need to download specific drivers from the LionBit manufacturer's website and install them manually.

macOS

Usually, macOS doesn't require drivers for LionBit as it recognizes the board as a serial device. If you encounter issues, check the manufacturer's documentation for macOS-specific instructions.

Linux

Linux often recognizes LionBit without requiring additional drivers. If you encounter any problems, it's a good practice to check the manufacturer's documentation or community forums for Linux-specific information.

Download CP2102 Driver

For Windows users who need manual driver installation, download the CP2102 driver from Silicon Labs:

Download Driver

3

Verify the Connection

Once the drivers are installed (if needed), you should be able to see LionBit listed as a serial device or COM port on your computer.

4

Select the Correct COM Port

In your development environment (e.g., Arduino IDE, Visual Studio Code), select the appropriate COM port corresponding to your connected LionBit board. This step is crucial for uploading code to the board.

5

Test the Connection

Upload a simple program, such as the "Hello World" example mentioned earlier, to your LionBit board to verify that the connection is working correctly.

Note: These are general steps for connecting and installing drivers for a development board like LionBit. The specific process may vary depending on the LionBit model and the operating system you're using. Always consult the official documentation and resources provided by LionBit or the manufacturer for detailed instructions specific to your board and setup.

Adding LionBit Library

2 min read

To add the LionBit library to the Arduino IDE and other supported platforms, you generally follow similar steps regardless of your platform. Here's a general guide for adding libraries to different development environments:

Adding LionBit Library to Arduino IDE

Open Arduino IDE: Launch the Arduino IDE on your computer.

Navigate to Arduino IDE Preferences: File > Preferences > Additional board manager URL

Copy and paste this URL:


                                                            https://raw.githubusercontent.com/espressif/arduino-esp32/gh-pages/package_esp32_index.json, http://arduino.esp8266.com/stable/package_esp8266com_index.json

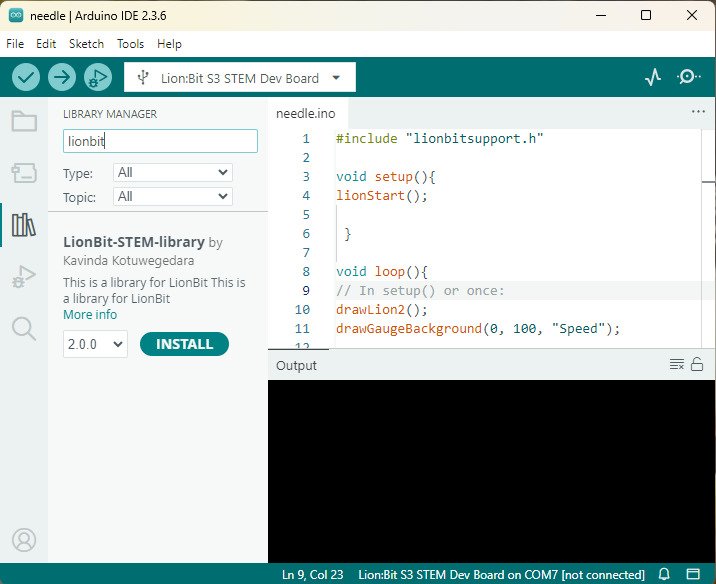

Navigate to Library Manager: Go to the "Sketch" menu. Select "Include Library" > "Manage Libraries…"

Search for LionBit Library: In the Library Manager, type "LionBit" to search for the LionBit library.

Install the Library: When you find the LionBit library in the list, click the "Install" button next to it.

Library Confirmation: You'll receive a confirmation message when the library is successfully installed.

Access the Library: The LionBit library is now accessible in the Arduino IDE and can be used in your LionBit projects.

Adding LionBit Library to Visual Studio Code with PlatformIO

Open Visual Studio Code: Launch Visual Studio Code.

Open Your Project: Open your LionBit project in Visual Studio Code.

Access PlatformIO: Go to the PlatformIO icon on the sidebar (usually a circular icon with a checkmark).

Library Manager: Click on "Libraries" in the PlatformIO sidebar.

Search for LionBit Library: In the Libraries view, use the search bar to look for the "LionBit" library.

Install the Library: Click the "Install" button next to the LionBit library.

Note: The process may vary if you are using other development platforms. The key is to locate the library manager in your preferred development environment, search for the LionBit library, and install it. Consult the specific documentation for your platform for any platform-specific details or changes.

Benefit: Adding the LionBit library allows you to access LionBit-specific functions and capabilities when programming your LionBit development board.

Programming Lion:Bit

Programming Overview

1 min read

LionBit is a versatile development board that offers Arduino compatibility, making it accessible to a wide range of users. You can code LionBit using various Arduino-compatible programming languages, providing flexibility and options for your development needs.

Arduino Compatibility Benefits

Familiarity

Users with Arduino experience will find LionBit's programming environment reassuringly familiar, easily transitioning their skills.

Vast Ecosystem

Access to extensive Arduino ecosystem with libraries, examples, and resources for easier development.

Community Support

Strong and active Arduino user community for help, knowledge sharing, and collaboration.

Programming Languages Supported

LionBit supports a range of programming languages, allowing you to choose the one that best suits your project and your level of expertise:

C/C++

Classic Arduino language for advanced users

MicroPython

Beginner-friendly Python-based language

CircuitPython

Adafruit's beginner-friendly variant

JavaScript & Python

Scripting languages for diverse applications

Coding Platforms

LionBit is compatible with various development platforms, each offering unique features and advantages:

Arduino IDE

A beginner-friendly integrated development environment that provides a straightforward approach to programming LionBit using the Arduino language.

Visual Studio Code

A popular, extensible code editor that supports multiple programming languages, making it a versatile option for LionBit users.

Espressif IDF

Espressif's IoT Development Framework offers advanced development capabilities and is well-suited for professional developers.

PlatformIO

An open-source development platform that simplifies coding for embedded systems with a unified development environment.

Setting up the Development Environment

2 min read

Setting up the development environment for LionBit involves configuring the software and tools that you'll use to write, compile, and upload code to the board. Below, I'll provide a general overview of setting up the development environment using popular platforms.

1. Arduino IDE Setup

1

Download and install the Arduino IDE for your operating system.

2

Open Arduino IDE and go to "File" > "Preferences." Add the board support URL for LionBit in the "Additional Boards Manager URLs" field.

3

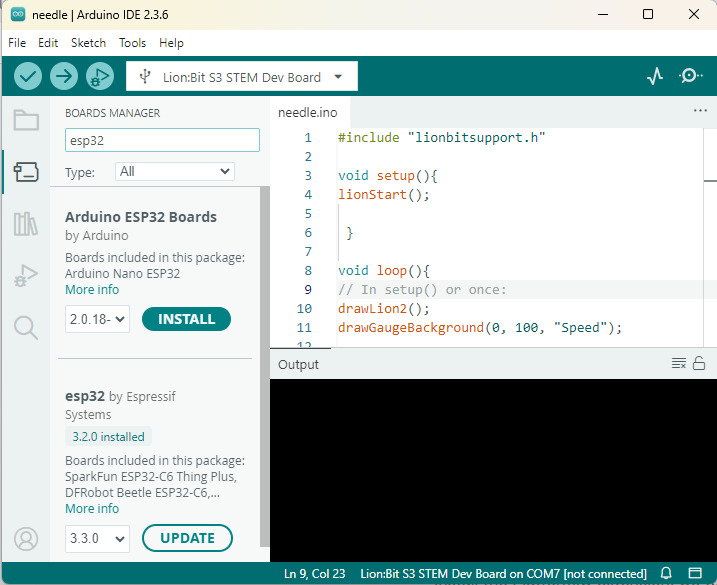

Go to "Tools" > "Board" > "Boards Manager," search for "LionBit," and install the LionBit board package.

4

Select the LionBit board from "Tools" > "Board" menu and choose the appropriate COM port under "Tools" > "Port."

2. Visual Studio Code Setup

1

Download and install Visual Studio Code.

2

Install the PlatformIO extension by searching for "PlatformIO IDE" in the Extensions view.

3

Create a new PlatformIO project for LionBit and select LionBit as your target board in the platformio.ini configuration file.

3. Other Development Platforms

Espressif IDF: Follow setup instructions from Espressif's official website and select ESP32-S3 target configuration.

PlatformIO: Install as VS Code extension and create new project with LionBit board specification in platformio.ini.

Note: Each platform may have specific steps and requirements, so consult their respective documentation and online resources for detailed instructions.

"Hello World" Examples for Lion:Bit

< 1 min read

Below are simple "Hello World" examples in each of the programming languages that Lion:Bit supports. These examples demonstrate the basic syntax for displaying "Hello, World!" on the Lion:Bit's LCD display.

C/C++ (Arduino IDE)

C++

#include <LionBit.h>

LionBit lionbit;

void setup() {
  lionbit.begin();
  lionbit.clearDisplay();
  lionbit.displayText("Hello, World!");
}

void loop() {
  // Your main program loop
}

MicroPython

Python

import lionbit

lionbit.init()
lionbit.clear_display()
lionbit.display_text("Hello, World!")

CircuitPython

Python

import board
from lionbit import LionBit

lionbit = LionBit()

lionbit.init()
lionbit.clear_display()
lionbit.display_text("Hello, World!")

JavaScript (Node.js)

JS

const lionbit = require('lionbit');

lionbit.init();
lionbit.clearDisplay();
lionbit.displayText('Hello, World!');

Note: These examples are simplified and demonstrate basic initialization, display clearing, and text display. The exact code may vary slightly depending on your chosen language and development platform, so refer to specific libraries and documentation for detailed setup instructions.

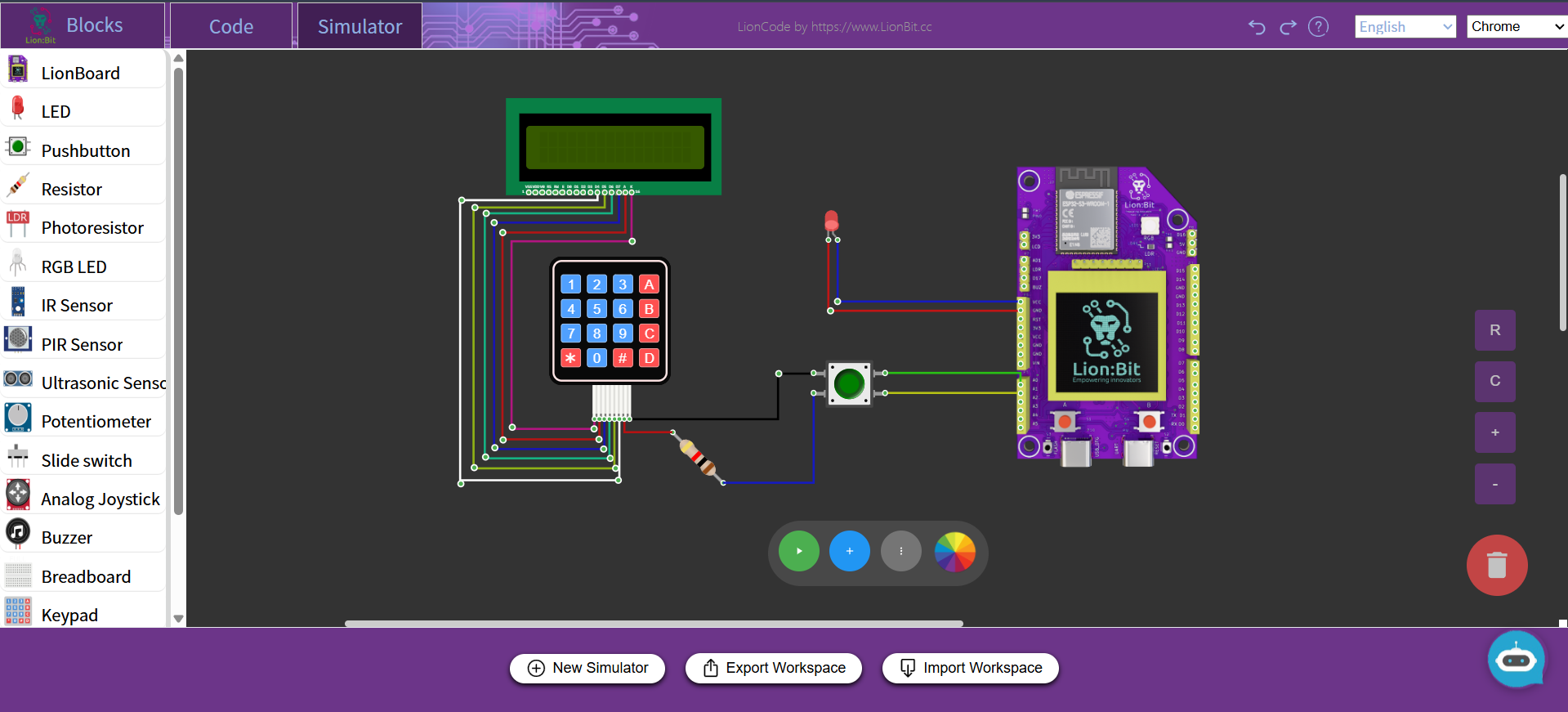

Visual Programming with LionCode

What is LionCode

1 min read

LionCode Visual Programming is a block-based programming language and development environment specifically designed for LionBit, a versatile development board. It provides a user-friendly and accessible way for individuals, particularly beginners and young learners, to create programs and interact with LionBit without needing to write code in traditional programming languages.

Key Features of LionCode Visual Programming

Block-Based Interface

Instead of writing code using text-based programming languages like C/C++ or Python, LionCode allows users to create programs by dragging and dropping blocks that represent different programming logic. This makes it easy to understand and use, even for those with no prior coding experience.

Simplified Programming

LionCode offers a visual and intuitive way to build programs, making it an excellent choice for educational purposes. Users can simply connect blocks to define the flow of their code and specify actions.

Ideal for Beginners

LionCode is particularly well-suited for beginners, children, and those who are new to programming. It lowers the barriers to entry, enabling individuals to learn the fundamentals of programming and electronics in a fun and engaging manner.

Supports LionBit Hardware

LionCode is tailored to work seamlessly with LionBit development boards, utilizing the hardware features like input buttons, sensors, and the LCD display. This integration simplifies the process of creating interactive projects.

Instant Feedback

LionCode provides real-time feedback, allowing users to see the results of their code immediately, which can be very motivating for learners and helps them understand the impact of their programming decisions.

Educational Tool

LionCode is an educational tool and development environment that leverages a block-based interface to simplify programming for LionBit boards, making programming accessible and enjoyable for beginners and young users.

Summary

LionCode Visual Programming is an educational tool and development environment that leverages a block-based interface to simplify programming for LionBit boards. It is designed to make programming accessible and enjoyable, especially for beginners and young users, by offering a user-friendly and interactive way to create programs for Lion:Bit's hardware components and sensors.

How to Code Lion:Bit

1 min read

Using LionCode to create simple programs for your LionBit development board is a straightforward and user-friendly process. LionCode's block-based interface simplifies programming, making it ideal for beginners and young learners. Here's a basic guide on how to use LionCode to create simple programs:

1

Open LionCode

Launch the LionCode environment on your computer. Ensure that your LionBit development board is connected and recognized by the software.

2

Create a New Project

Start by creating a new project within LionCode. Give your project a meaningful name.

3

Understand the Interface

Familiarize yourself with the LionCode interface. You'll find a palette of blocks on the left, the workspace in the center, and an area for project settings on the right.

4

Drag and Drop Blocks

To build your program, drag and drop blocks from the palette onto the workspace. Each block represents a specific programming function or command.

5

Connect Blocks

Connect the blocks to define the flow of your program. You can connect blocks horizontally to create sequences and vertically to structure loops or conditional statements.

6

Configure Block Parameters

Some blocks have parameters that you can adjust. For example, you might configure the duration of a delay or the text to be displayed on the LCD screen.

7

Test Your Program

As you create your program, LionCode provides real-time feedback. You can see how your program will run on the LionBit board by simulating its behavior in the LionCode environment.

8

Upload to LionBit

When you're satisfied with your program, you can upload it to your LionBit development board. Ensure that your board is connected to your computer, and then initiate the upload process.

9

Run Your Program

After uploading your program, you can run it on your LionBit. You'll see your program in action, whether it's controlling LEDs, displaying text on the LCD screen, or interacting with sensors.

10

Debug and Refine

If your program doesn't work as expected, you can return to LionCode to debug and refine it. Check for errors in your logic or configurations, and make adjustments as needed.

11

Save Your Project

Don't forget to save your project in LionCode. This allows you to revisit and modify your program in the future.

Getting Started with LionCode

LionCode makes it easy to create simple programs for your LionBit development board, and it provides a supportive environment for learning and experimentation. As you become more comfortable with the interface, you can tackle more complex projects and explore the full potential of your LionBit board.

Components & Sensors

Internal Components and Sensors

2 min read

LionBit is equipped with a variety of internal components and sensors that expand its capabilities for a wide range of projects. Here's an overview of the internal components and sensors you'll find on a typical LionBit board:

1. Input Buttons (A and B)

LionBit includes two input buttons labeled "A" and "B." These buttons provide a simple way to capture user input. You can program these buttons to trigger specific actions or functions in your projects. They are often used for navigation, game controls, and user interactions.

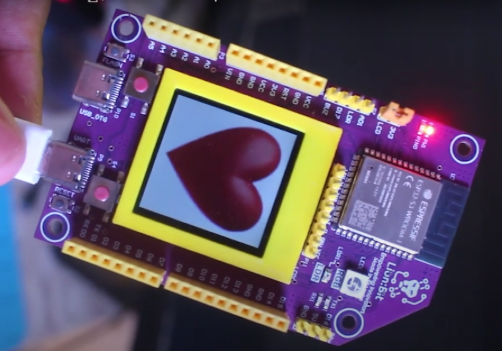

2. LCD Display

LionBit features an LCD display that can be used to show text and graphics. This display provides a visual interface for your projects, allowing you to convey information, display sensor readings, create menus, and showcase data in a user-friendly manner.

3. RGB LED (Light-Emitting Diode)

LionBit comes with an RGB LED, which is capable of displaying a wide range of colors by mixing red, green, and blue light. You can control the RGB LED to signal status, create visual indicators, or add colorful effects to your projects.

4. Buzzer

The onboard buzzer can generate sound, allowing you to include audio feedback and alerts in your projects. It can be used for simple tones, melodies, or even as a component in interactive games or notification systems.

5. Light-Dependent Resistor (LDR)

The LDR is a light sensor that measures the intensity of ambient light. It can detect changes in light levels and is commonly used in projects that involve light-sensitive applications, such as automatic lighting control or light-dependent alarms.

GPIO & Touch Pins

Additionally, the GPIO (General-Purpose Input/Output) pins and touch pins on LionBit offer the flexibility to expand your project's capabilities further by connecting external components and sensors.

Components Summary

These internal components and sensors are integrated into LionBit, providing built-in functionality for various applications. They are essential for creating interactive, informative, and dynamic projects.

Programming the Onboard Components and Sensors

1 min read

Once you have selected LionBit as your target board in your preferred development environment (e.g., Arduino IDE or PlatformIO) and installed the LionBit library, you can start programming the onboard components and sensors. Here's how to program these components using the LionBit library:

1

Setting Up the Environment

Open your chosen development environment (e.g., Arduino IDE or PlatformIO)
Select "LionBit" as your target board in the settings or platform configuration

2

Include the LionBit Library

In your code, include the LionBit library to access its functions and features. This is typically done at the beginning of your code using the #include directive.

#include <LionBit.h>

3

Accessing Components and Sensors

You can access the various onboard components and sensors by calling the appropriate functions provided by the LionBit library. The library abstracts the hardware interactions, making it easier to use these components.

4

Programming User Interactions

For components like the input buttons (A and B), you can use the LionBit library to detect button presses and respond accordingly.

5

Utilizing the LCD Display

To use the LCD display, you can use functions provided by the LionBit library to show text, graphics, and other information.

Code Examples

Controlling the RGB LED

C++

#include <LionBit.h>

void setup() {
  // Initialize the LionBit library
  LionBit.begin();

  // Turn the RGB LED red
  LionBit.ledSetColor(255, 0, 0);
}

void loop() {
  // Your main program logic goes here
}

Reading the LDR Sensor

C++

#include <LionBit.h>

void setup() {
  // Initialize the LionBit library
  LionBit.begin();

  // Initialize the LDR sensor
  LionBit.initLDR();
}

void loop() {
  // Read the LDR sensor value
  int ldrValue = LionBit.readLDR();

  // Use the ldrValue in your project logic
}

Reacting to Button Presses

C++

#include <LionBit.h>

void setup() {
  // Initialize the LionBit library
  LionBit.begin();
}

void loop() {
  // Check if button A is pressed
  if (LionBit.isButtonAPressed()) {
    // Perform an action
  }

  // Check if button B is pressed
  if (LionBit.isButtonBPressed()) {
    // Perform a different action
  }
}

Displaying Text on the LCD

C++

#include <LionBit.h>

void setup() {
  // Initialize the LionBit library
  LionBit.begin();

  // Initialize the LCD
  LionBit.initLCD();
}

void loop() {
  // Display "Hello, LionBit!" on the LCD
  LionBit.displayText("Hello, LionBit!", 0, 0);
}

Note: These examples demonstrate how to use the LionBit library to control and interact with the onboard components and sensors. You can access the library's documentation or reference materials to explore more functions and capabilities for your LionBit projects. The LionBit library simplifies hardware interaction, making it easier for you to create engaging and interactive applications with your LionBit development board.

GPIO and Touch Pins

GPIO and Touch Pins Overview

2 min read

LionBit provides access to GPIO (General-Purpose Input/Output) pins and touch pins, offering the flexibility to expand the capabilities of your projects by connecting external sensors, devices, and components. Here's an overview of these features:

1. GPIO (General-Purpose Input/Output) Pins

GPIO pins are versatile pins on the LionBit development board that can be individually configured as inputs or outputs. They are labeled with numbers (e.g., GPIO0, GPIO1, etc.) and can be used for a wide range of purposes, such as:

Digital Input

Read digital signals (high or low) from sensors, buttons, switches, and more.

Digital Output

Control digital devices, like LEDs, relays, or motors.

Analog Input

Measure analog voltages for tasks like reading temperature or light levels.

PWM Output

Generate PWM signals for controlling the intensity of LEDs, servos, and other components.

Usage: To use GPIO pins in your project, you can configure them and interact with them through your development environment (e.g., Arduino IDE, PlatformIO) using the LionBit library. This library simplifies the process of working with GPIO pins by providing easy-to-use functions.

2. Touch Pins

LionBit also offers touch-sensitive pins that can detect touch or proximity. These pins enable you to create interactive projects and are particularly useful for user interfaces and proximity sensing.

Touch Detection

Touch pins can be used to trigger actions based on touch events, such as controlling lighting, playing sound, or changing the display content when someone interacts with your project.

Easy Programming

Similar to GPIO pins, touch pins can be configured and interacted with through the LionBit library, making it easy to incorporate touch functionality into your projects.

GPIO and Touch Pins Benefits

By utilizing the GPIO and touch pins, you can greatly expand the functionality of your LionBit projects. These pins offer the ability to connect a wide range of external components and sensors, allowing you to create custom, interactive, and sensor-driven applications tailored to your specific needs. The flexibility provided by these pins is a key advantage when working with LionBit.

How to Connect External Sensors and Devices

1 min read

To connect external sensors and devices to your LionBit development board, you will typically use the GPIO (General-Purpose Input/Output) pins and any available communication interfaces like I2C, SPI, and UART. Here's a general guide on how to connect external sensors and devices to LionBit:

1

Identify the GPIO Pins

Review your LionBit board's documentation to identify the available GPIO pins and their capabilities. Some GPIO pins may support specific functions, like PWM, analog input, or digital I/O. Choose pins that match the requirements of your sensor or device.

2

Gather Necessary Components

Ensure you have the external sensor or device you want to connect. Additionally, gather any necessary components like resistors, wires, or breakout boards that might be required for the connection.

3

Make Physical Connections

Connect the external sensor or device to the selected GPIO pins on LionBit. This includes power supply (VCC and GND), data/signal lines, and pull-up/pull-down resistors if needed.

4

Configure GPIO Pins

In your code, configure the GPIO pins you've connected to match the sensor's requirements. Use the LionBit library to set up the pins as digital inputs, outputs, or for specific communication protocols.

5

Read Sensor Data

Write code to read data from the external sensor. The specifics will depend on the sensor's data format and communication protocol. Use libraries or code examples provided by the sensor manufacturer if available.

6

Process and Use Data

Once you've successfully read data from the sensor, you can process and use it in your project. Display it on the LCD, trigger actions based on the sensor's readings, or send it to an IoT platform.

Important: It's crucial to test your setup thoroughly and ensure that the sensor or device is functioning as expected. Debug any issues that may arise in your connections or code. Always refer to the documentation provided by the sensor or device manufacturer for specific connection and usage instructions.

Sample Projects Involving GPIO and Touch Pins

2 min read

Here are a couple of sample projects involving GPIO and touch pins for your LionBit development board. I'll provide a brief description of each project and include example code snippets to get you started. These projects demonstrate how to use these pins for different applications.

Project 1: Digital Door Lock with Touch Pins

Create a simple digital door lock system using touch pins. When a specific touch sequence is detected, the door lock will either lock or unlock.

Components Needed:

LionBit Development Board
Touch Sensor Module
Servo Motor
A door or simulated locking mechanism

Code:

#include <LionBit.h>

int touchPin1 = GPIO0;  // Define the touch pins
int touchPin2 = GPIO2;

Servo doorLock;  // Create a servo object

void setup() {
  LionBit.begin();
  doorLock.attach(GPIO5);  // Attach the servo to a GPIO pin
}

void loop() {
  if (LionBit.isTouchDetected(touchPin1) && LionBit.isTouchDetected(touchPin2)) {
    // If both touch pins are touched, unlock the door
    doorLock.write(0);  // Rotate the servo to unlock position
    delay(2000);  // Allow time for the door to open
    doorLock.write(90);  // Rotate the servo to lock position
  }
}

Project 2: LED Traffic Light with GPIO Pins

Create a simple traffic light simulation using LED components and GPIO pins. The traffic light will cycle through the red, yellow, and green lights in a loop.

Components Needed:

LionBit Development Board
3 LEDs (red, yellow, green)
Appropriate current-limiting resistors
Breadboard and jumper wires

Code:

#include <LionBit.h>

int redLED = GPIO0;
int yellowLED = GPIO2;
int greenLED = GPIO4;

void setup() {
  LionBit.begin();
  pinMode(redLED, OUTPUT);
  pinMode(yellowLED, OUTPUT);
  pinMode(greenLED, OUTPUT);
}

void loop() {
  digitalWrite(redLED, HIGH);    // Red
  digitalWrite(yellowLED, LOW);
  digitalWrite(greenLED, LOW);
  delay(3000);

  digitalWrite(redLED, LOW);     // Green
  digitalWrite(yellowLED, LOW);
  digitalWrite(greenLED, HIGH);
  delay(3000);

  digitalWrite(redLED, LOW);     // Yellow
  digitalWrite(yellowLED, HIGH);
  digitalWrite(greenLED, LOW);
  delay(1000);
}

Project Development

These sample projects showcase how to use GPIO pins and touch pins in practical applications. You can modify and expand upon these projects to suit your specific needs or create entirely new projects that leverage these pins for various interactive and functional purposes.

Networking and Communication

Networking and Communication Overview

1 min read

LionBit supports various networking and communication options, allowing you to connect your development board to the internet, other devices, and IoT (Internet of Things) platforms. Here's an overview of networking and communication options available for LionBit:

1. Wi-Fi Connectivity

LionBit boards, like the ESP32-based boards, come with built-in Wi-Fi capabilities. You can connect to local Wi-Fi networks or create your own Wi-Fi access point. Wi-Fi connectivity enables your LionBit board to communicate with the internet, cloud services, and other devices over a wireless network.

2. Bluetooth Connectivity

Bluetooth is another communication option available for LionBit. It can be used for connecting to smartphones, tablets, and other Bluetooth-enabled devices. This can be useful for creating Bluetooth-based projects such as home automation, health monitoring, or data transfer.

3. IoT Cloud Platforms

LionBit is compatible with various IoT cloud platforms, including Arduino IoT Cloud, AWS IoT, Microsoft Azure, Google Cloud IoT Core, IBM Watson IoT, and any platform that supports ESP32-based devices.

4. Communication Protocols

LionBit supports various communication protocols, including HTTP and MQTT for data transmission, RESTful APIs for web services, and local networking for home automation and monitoring solutions.

5. Data Exchange with Other Devices

LionBit can communicate with other devices via Wi-Fi, Bluetooth, or serial connections (e.g., UART). This allows you to create projects involving data exchange between LionBit and other microcontrollers, sensors, or IoT devices.

6. Local Networking

LionBit can also be integrated into local networks, allowing it to communicate with other devices on the same network. This is useful for building home automation systems or local monitoring solutions.

IoT Cloud Platform Compatibility

Arduino IoT Cloud

Easily connect and manage your LionBit board on the Arduino IoT Cloud platform, allowing you to remotely monitor and control your devices and access data from anywhere.

Amazon Web Services (AWS)

LionBit can be integrated with AWS IoT, enabling secure and scalable communication and data storage in the AWS cloud environment.

Microsoft Azure

Azure IoT Hub and Azure IoT Central are options for LionBit to connect with Microsoft's Azure cloud platform for IoT applications.

Other IoT Platforms

You can use LionBit with other IoT platforms like Google Cloud IoT Core, IBM Watson IoT, or any platform of your choice that supports ESP32-based devices.

Networking Benefits

When working with LionBit for networking and communication, you'll typically use relevant libraries, APIs, and protocols to establish connections and exchange data. This versatility makes LionBit suitable for a wide range of IoT and connected device projects. Depending on your project's requirements, you can choose the most appropriate communication method and platform.

Connecting LionBit to Wi-Fi Networks

1 min read

To connect your LionBit development board to a Wi-Fi network, you can use the built-in Wi-Fi capabilities provided by the ESP32 microcontroller. Here's a sample code to connect LionBit to a Wi-Fi network using the Arduino IDE:

Wi-Fi Connection Code:

#include <LionBit.h>
#include <WiFi.h>

const char* ssid = "Your_WiFi_SSID";     // Replace with your Wi-Fi network name
const char* password = "Your_WiFi_Password"; // Replace with your Wi-Fi password

void setup() {
  LionBit.begin();

  // Connect to Wi-Fi
  Serial.begin(115200);
  delay(10);

  // Connect to Wi-Fi network
  Serial.println();
  Serial.print("Connecting to ");
  Serial.println(ssid);

  WiFi.begin(ssid, password);

  while (WiFi.status() != WL_CONNECTED) {
    delay(500);
    Serial.print(".");
  }

  Serial.println("");
  Serial.println("Connected to Wi-Fi");
  Serial.print("IP address: ");
  Serial.println(WiFi.localIP());
}

void loop() {
  // Your main program logic goes here
}

Instructions: In this code, replace "Your_WiFi_SSID" and "Your_WiFi_Password" with your actual Wi-Fi network name (SSID) and password. When you upload this code to your LionBit, it will connect to the specified Wi-Fi network.

The sample code initializes a Wi-Fi connection and waits until the LionBit successfully connects to the network. You can then proceed with your project logic, such as sending and receiving data over Wi-Fi, interacting with IoT cloud platforms, or accessing web services.

Integrating LionBit with IoT Cloud Platforms

3 min read

Integrating LionBit with IoT cloud platforms enables you to remotely monitor, control, and collect data from your devices. Here's a high-level overview of how you can integrate LionBit with several popular IoT cloud platforms:

1. Arduino IoT Cloud

Arduino IoT Cloud is a user-friendly platform for connecting your LionBit to the cloud. It allows you to create web-based dashboards to visualize and control your devices.

Integration Steps:

Set up an Arduino IoT Cloud account
Install the Arduino IoT Cloud library in your Arduino IDE
Create a "thing" in the Arduino IoT Cloud and generate a sketch
Program your LionBit using the generated sketch
Upload the sketch to your LionBit

Result: Your LionBit will then be connected to the Arduino IoT Cloud, allowing you to remotely monitor and control it through the web-based interface.

2. Microsoft Azure IoT

Azure IoT provides a robust and scalable platform for IoT applications. To connect LionBit to Azure IoT:

Integration Steps:

Set up an Azure IoT Hub and register your device
Use the Azure IoT library for Arduino to develop code
Include the device connection information in your LionBit code
Upload your code to LionBit

Result: Your LionBit will now send data to Azure IoT Hub, where you can process and analyze it using Azure's services.

3. AWS IoT

Amazon Web Services (AWS) IoT offers a comprehensive platform for IoT applications. To connect LionBit to AWS IoT:

Integration Steps:

Create an AWS IoT Thing and generate security certificates
Use the AWS IoT SDK for Arduino to develop code for LionBit
Include the certificates and AWS endpoint information in your code
Upload your code to LionBit

Result: Your LionBit will securely communicate with AWS IoT, allowing you to store and process data in the AWS cloud.

4. Blynk

Blynk is a user-friendly platform for building IoT applications with no coding required. To integrate LionBit with Blynk:

Integration Steps:

Set up a Blynk account and create a project
Install the Blynk library for Arduino
Generate an authentication token for your Blynk project
Develop your LionBit code with Blynk library
Upload the code to LionBit

Result: Your LionBit will be able to interact with your Blynk project, allowing you to create custom dashboards and control widgets.

5. ThingSpeak

ThingSpeak is an IoT platform by MathWorks that allows data collection and analysis. To connect LionBit to ThingSpeak:

Integration Steps:

Create a ThingSpeak account and set up a channel
Install the ThingSpeak library for Arduino
Develop your LionBit code to collect data
Include your ThingSpeak channel information in your code
Upload the code to LionBit

Result: Your LionBit will periodically send data to your ThingSpeak channel, which you can use for data analysis and visualization.

Important: In each case, the specific integration process will depend on the platform's requirements and the services you want to use. Refer to the official documentation of the respective IoT cloud platform for detailed instructions and examples for connecting your LionBit.

Community and Support

Community and Support Overview

2 min read

LionBit's community and support are crucial resources for users to seek help, share knowledge, and collaborate with others on projects and issues. Here's an overview of how you can access community and support resources for LionBit:

1. Official Documentation

LionBit typically provides official documentation that includes detailed information on setting up, using, and programming the development board. This documentation often includes hardware specifications, programming guides, and sample code.

2. Online Forums and Communities

LionBit may have official online forums, community platforms, or user groups where users can interact, ask questions, and share their experiences and projects. These forums are a great place to connect with other users, get answers to technical questions, and find inspiration for your own projects.

3. Social Media

LionBit may maintain a presence on social media platforms like Twitter, Facebook, or LinkedIn. Following LionBit on social media can keep you informed about updates, events, and community activities.

4. GitHub

LionBit may host its code and related resources on platforms like GitHub. You can find libraries, example code, and other development resources on their GitHub repositories.

5. Support Tickets and Email

For more technical or specific issues, LionBit may provide a support ticket system or an email address for direct contact with their support team. This is useful for addressing individual problems or receiving assistance with advanced technical issues.

6. User Groups and Meetups

In some cases, there may be local or virtual user groups or meetups focused on LionBit and related technologies. These are excellent opportunities for networking, learning, and collaborating with other users.

7. Third-Party Communities

Beyond official resources, you may find third-party communities, forums, and online groups where LionBit enthusiasts gather to discuss their experiences, projects, and technical challenges.

Community Benefits

Remember to check LionBit's official website or documentation for the most accurate and up-to-date information on the available support and community resources. Engaging with the LionBit community and accessing support resources can help you make the most of your LionBit development board and foster a supportive network of fellow users and enthusiasts.

Getting Started with Community Engagement

Start with Documentation

Begin by reading the official documentation to understand the basics before asking questions in forums or communities.

Ask Clear Questions

When seeking help, provide clear details about your issue, what you've tried, and what you're trying to achieve.

Share Your Projects

Contribute to the community by sharing your projects, code snippets, and lessons learned with others.

Be Supportive

Help other community members by answering questions and providing constructive feedback on their projects.

Pro Tip: The best way to get help is to be an active member of the community. Share your knowledge, help others, and you'll find that the community will be there to support you when you need it most.
